NP-IS Water Pumps

  • Nombre del producto: NP-IS Water Pumps
  • Código de producto: 1091406583121465344
  • Pump Type: Centrifugal
  • Drvie Type: DC
  • Power: Motor/ Diesel
  • Capacity: 6.3-400 m³/h
  • Head: 5-125 m
  • Descripción del Producto
  • 参数
  • CONSTRUCTION DARWING
  • SLECTION CHART
  • PERFORMANCE PARAMETERS
  • Naipu® NP-IS Series are single-stage single suction horizontal end suction centrifugal pumps designed for clean water or similar liquids in water supply and drainage applications in municipal, industrial and agricultural irrigation projects.

    Typical Applications---
      Tank filling
      Water supply
      Water transfer
      Pressure boosting
      Irrigation

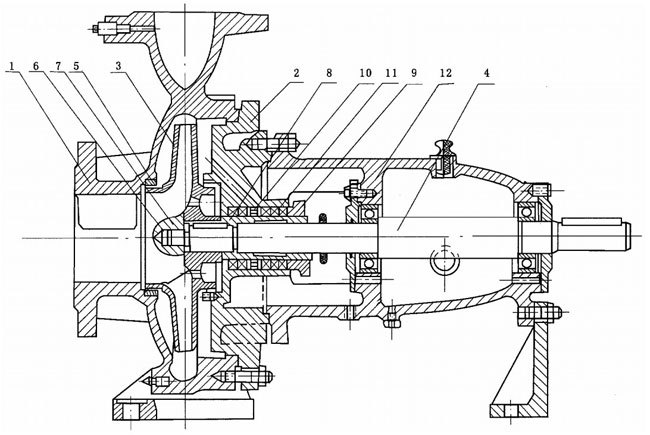

  • NP-IS Water Pump Configuration Drawing





    Main Part Number At The Drawing


    1. Pump casing
    2. Pump Cover
    3. Impeller
    4. Shaft
    5. Wear Ring
    6. Impeller Cap
    7. Braking Pad
    8. Shaft Sleeve
    9. Packing Gland
    10. Seal Cage
    11. Packing
    12. Cantilever Bearing Assembly

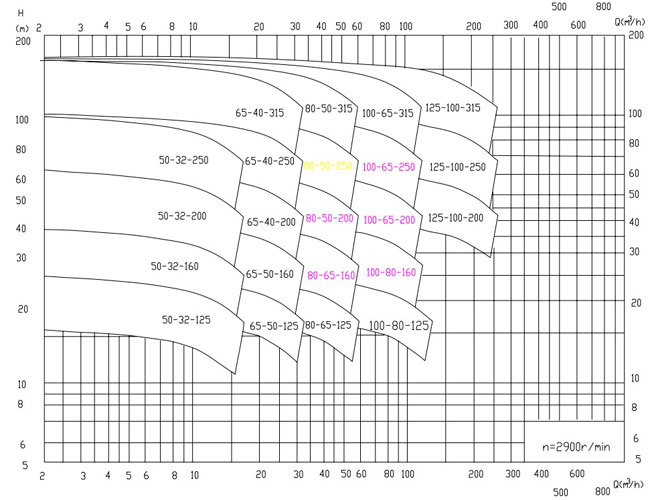

  • NP-IS WATER PUMP SELECTION CHART





    Note:Approximate Performance For Clear Water,To Be Used For Primary Selection Only.

  • NP-IS WATER PUMP PERFORMANCE PARAMETERS
