NP- Slurry Pump Hydrocyclone
- Nombre del producto： NP- Slurry Pump Hydrocyclone
- Código de producto： 1091406561445302272
- Pump Type： Centrifugal
- Drvie Type： DC
- Power： Motor/ Diesel
- Descripción del Producto
- 参数

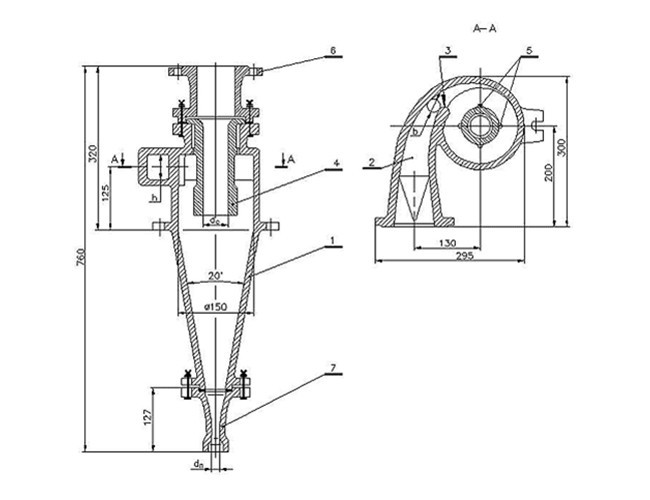

- CONSTRUCTION DARWING
- SLECTION CHART
- PERFORMANCE PARAMETERS
-
Naipu® NP- Hydrocyclone series used for classifying the ore pulp in the grinding loop, a combined unit usually selected by connecting several units of cyclone in parrallel. Its classifying fineness and processing capacity are greatly affected by the diameter of upper cylinder.
Typical Applications---
Classifying the ore pulp in the grinding loop
Mining classifying
Sand classifying
Mud classifying -
-
-
-
-
Model Diameter
(mm)Cone
Angle (°)Overflow Particie size
(μm)Capacity
(m3/h)Overflow Pipe diameter
(mm)Feed Portarea
(mm)2Discharge diameter
(mm)Outline dimension
(mm)Weight
(kg)FX-125 125 20 20-50 3.1-6.1 14,18,25,35 25×10 15,25 260×320×646 57 FX-150 150 20 35-75 7.5-15 20,40,32,25 22×22 32,24,16 570×426×1123 128 FX-250 250 20 40-100 10-39 26,34,50,69 50×20 20,25,35 852×516×1273 205 FX-300 300 20 45-105 37-43 65,75 47×60 35,40 852×525×1940 287 FX-350 350 20 50-110 74-90 115,105,95 80×65 80,70,60 955×680×2299 430 FX-500 500 20 60-120 170-220 180,160,140 110×120 110,90,70 1090×811×2835 718
